How an Air Conditioner Works: Simple Explanation

What Every Wichita Homeowner Should Know About How an Air Conditioner Works

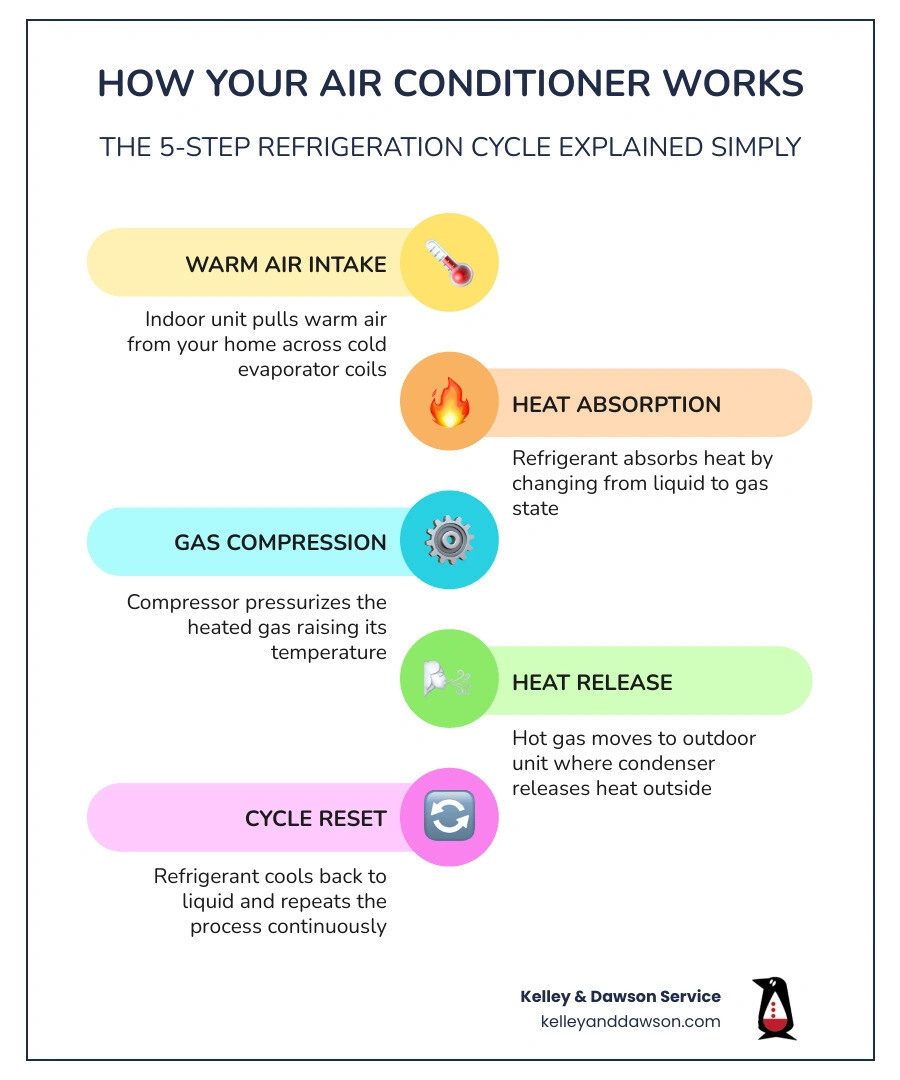

How your air conditioner works explained simply: your AC does not create cold air. Instead, it pulls heat out of your home and moves it outside, leaving cooler air behind. Here is a quick overview of how that happens:

1. Warm air is drawn in — Your indoor unit pulls warm air from inside your home across cold evaporator coils.
2. Refrigerant absorbs the heat — A special fluid called refrigerant absorbs that heat by changing from liquid to gas.
3. The gas is compressed — The compressor pressurizes the heated gas, raising its temperature further.
4. Heat is released outside — The hot gas moves to the outdoor unit, where the condenser coil releases the heat into the outside air.
5. The cycle resets — The refrigerant cools back down, turns to liquid again, and the whole process repeats continuously.

That endless loop is called the refrigeration cycle, and it is the same basic process that keeps your refrigerator cold — just scaled up for your entire home.

On July 17, 1902, an engineer named Willis Carrier designed the first modern air conditioning system. More than 120 years later, the core science behind your Wichita home's AC unit has not changed much. What has changed is how efficiently modern systems run — and how important it is to keep them well maintained through the hot Kansas summers.

Whether your system is struggling to keep up with the Wichita heat or you just want to understand what is happening behind the vents, knowing the basics helps you make smarter decisions about your home's comfort.

How Your Air Conditioner Works Explained Simply

To truly understand how your air conditioner works explained simply, we have to look at the science of heat transfer. Most people think an air conditioner works like a furnace, but in reverse—blowing "coldness" into a room. In reality, your AC is a heat-moving machine. It is much easier to move heat from one place to another than it is to "create" cold.

When we talk about Understanding HVAC Systems, we are looking at a process of subtraction. By removing thermal energy (heat) from the air inside your living room, the air that remains feels cooler. This process is governed by the laws of physics, specifically thermodynamics, which dictate how energy moves between substances of different temperatures.

One of the most surprising facts for homeowners in Wichita, KS, and surrounding areas like Maize or Goddard, is that your air conditioner is almost always recirculating the air already inside your house. It isn't pulling fresh air from the backyard; it is cleaning, cooling, and dehumidifying the air you are already breathing. This makes the system incredibly efficient because it doesn't have to work as hard to cool down air that has already been partially conditioned.

How your air conditioner works explained simply: The Heat Transfer Principle

The secret to your comfort lies in the Second Law of Thermodynamics, which states that heat naturally flows from a warmer place to a cooler place. Your air conditioner uses this principle to its advantage. By making the coils inside your home much colder than the indoor air, the heat from your home naturally "jumps" onto those coils.

This is the foundation of Air Conditioning. As the indoor fan blows warm house air over these freezing coils, the heat is absorbed by the refrigerant inside. Once that heat is trapped, the system carries it outside, where the outdoor unit releases it into the Kansas wind. It’s a bit like using a sponge to soak up water in one room and squeezing it out in another.

How your air conditioner works explained simply: The Role of Refrigerant

If the AC is the "mover," the refrigerant is the "vehicle." Refrigerant is a specialized chemical compound designed to change states from a liquid to a gas at very low temperatures. This "phase conversion" is the magic trick of the HVAC world.

When a liquid converts to a gas, it absorbs a massive amount of heat. Think about how you feel cold when you step out of a swimming pool on a windy day in Haysville or Derby—that’s the water on your skin evaporating and taking your body heat with it. Modern refrigerants are designed to do this inside a closed loop of copper coils. Over the years, environmental standards have shifted these chemicals away from older, chlorine-based formulas to protect the ozone layer, leading to the high-efficiency, eco-friendly refrigerants we use today.

The 4 Main Components of Your AC System

To get the job done, your system relies on four heavy hitters working in perfect harmony. If any of these parts fail, the whole cycle grinds to a halt.

The Indoor Evaporator Coil

Located inside your home (usually in the attic or a closet), the evaporator coil is where the cooling actually happens. Cold, liquid refrigerant enters these coils. As the blower fan pushes warm indoor air across the fins of the coil, the refrigerant inside soaks up the heat. This process also serves another vital purpose: moisture removal. As the warm air hits the cold coil, humidity in the air condenses into water droplets, which are then drained away. This is why air-conditioned air feels "crisp" rather than "sticky."

The Outdoor Compressor and Condenser

The outdoor unit—the big metal box in your yard—houses the compressor and the condenser coil. Once the refrigerant has absorbed indoor heat and turned into a gas, it travels to the compressor. The compressor "squeezes" the gas, which raises its temperature significantly.

Why would we want to make it hotter? Because for the heat to leave the refrigerant, the refrigerant must be hotter than the outside air. Even on a 100-degree day in Wichita, the compressed gas is hot enough to shed its heat into the outdoors as the condenser fan blows ambient air across the outdoor coils.

Step-by-Step: The Refrigeration Cycle

The refrigeration cycle is a continuous loop that keeps your home at the perfect temperature. It's helpful to think of it as a four-stage journey:

1. Evaporation: Cold liquid refrigerant enters the indoor coil, absorbs heat, and boils into a gas.
2. Compression: The gas travels outside to the compressor, where it is pressurized into a high-heat vapor.
3. Condensation: The hot gas moves through the condenser coils, releasing its heat to the outside air and turning back into a liquid.
4. Expansion: The liquid passes through an expansion valve, which drops the pressure and temperature, getting it ready to start all over again.

This is very similar to How Does a Heat Pump Work, except a heat pump can actually reverse this cycle to provide warmth in the winter!

Phase Conversion and Cooling

The most important part of this cycle is the boiling point of the refrigerant. Unlike water, which boils at 212°F, refrigerants have very low boiling points. This allows them to "boil" into a gas even when the air in your home is only 75°F. This state change is what creates the powerful cooling effect that makes Kansas summers bearable.

Releasing Heat Outdoors

Once the refrigerant has done its job inside, it’s a high-pressure, high-heat gas. The cooling fins on your outdoor unit provide a large surface area for the heat to escape. As the outdoor fan pulls air through these fins, the heat is carried away, and the refrigerant reverts to its liquid state, effectively "resetting" the cycle for another pass through your home.

Why Dehumidification Matters for Wichita Comfort

In Wichita, it’s often not just the heat—it’s the humidity. High moisture levels in the air make it harder for your body to cool itself through sweat. Your air conditioner is actually a powerful dehumidifier.

When the warm, moist air from your home hits the freezing evaporator coil, it reaches its "dew point." This causes the moisture to turn into liquid water, similar to how a cold drink "sweats" on a patio in Andover or Augusta. This water drips into a collection pan and is moved out of your home.

Managing the Condensate Drain Line

All that water has to go somewhere. The condensate drain line is a small pipe that carries this moisture outside or to a floor drain. If this line gets clogged with algae or debris, it can cause water to back up, potentially damaging your home or causing the system to shut down. Keeping this line clear is a vital part of maintaining indoor air quality and system health.

Comparing Different Cooling Systems

Not every home uses the same setup. Depending on your home's size and whether you have existing ductwork, one of these three systems might be a better fit.

For a deeper dive into these options, check out our Central AC vs Ductless Mini Split Comparison.

Split-Systems vs. Packaged Units

A split-system is the most common setup in the Wichita area. It "splits" the components between an indoor air handler and an outdoor condenser. A packaged unit, however, puts everything into one cabinet. These are common for homes without crawlspaces or attics, often installed on the roof or a concrete pad.

The Rise of Ductless Mini-Splits

Ductless systems are gaining popularity in places like Valley Center and Kechi. They allow for "zoned" cooling, meaning you can keep your bedroom ice-cold without wasting energy cooling an empty living room. Because they don't lose energy through leaky ductwork, they are often among the most energy-efficient options available.

Keeping Your System Efficient in Wichita, KS

With nearly 60 years of experience serving the Wichita community, we have seen how the Kansas climate can beat up an AC unit. Dust, cottonwood fluff, and high winds can all reduce efficiency. Regular AC Maintenance Wichita KS is the best way to ensure your system survives the summer.

Simple Maintenance Steps for Homeowners

You don't need to be a pro to help your system run better. Here are a few simple tasks:

• Change Air Filters: Do this every 30 to 90 days. A dirty filter blocks airflow and forces the system to work harder.
• Clear the Area: Ensure your outdoor unit has at least 18 to 24 inches of clearance. Trim back bushes and remove weeds.
• Check the Fins: If the "fins" on your outdoor unit are bent, they block airflow. A simple fin comb can straighten them out.
• Schedule a Tune-Up: A professional inspection once a year can catch small leaks or electrical issues before they become expensive breakdowns.

Frequently Asked Questions about Air Conditioning

Does my air conditioner pull fresh air from the outside?

No. Most residential systems recirculate the air already inside your home. It pulls air through the return vents, filters it, cools it, and pushes it back into your rooms. This is why keeping your indoor air clean and your filters fresh is so important for your health!

Why is my air conditioner blowing warm air?

There are several common culprits. First, check your thermostat to ensure it’s set to "Cool" and "Auto" rather than just "On." If the fan is set to "On," it will blow air even when the cooling cycle isn't running. Other causes include a tripped circuit breaker, a severely clogged air filter, or a refrigerant leak. If your outdoor unit is covered in ice, turn the system off immediately and call for service.

How long should a modern AC unit last?

In our region, a well-maintained air conditioner typically lasts between 15 and 20 years. However, the Wichita climate can be harsh. Systems that aren't regularly cleaned or that are forced to run 24/7 due to poor insulation may wear out faster. Regular maintenance is the single biggest factor in extending your system's lifespan.

Conclusion

Understanding how your air conditioner works explained simply helps you appreciate the hard work your HVAC system does every day. From the first system invented by Willis Carrier to the high-tech, energy-efficient units of May 2026, the goal remains the same: keeping your family comfortable.

At Kelley & Dawson Service, we’ve spent nearly six decades perfecting the art of home comfort in Wichita and surrounding communities like Park City and Mulvane. Whether you need a quick repair, a seasonal tune-up, or a brand-new installation, our family-driven experience and 24/7 support ensure you’re never left in the heat.

Don't wait for the next Kansas heatwave to find out if your system is up to the task. Schedule your professional AC service today and experience the meticulous care that has made us a Wichita staple since 1967.
