How to Find Permit Requirements for AC Replacement

What Permits and Inspections Are Required for AC Replacement in Wichita, KS

Understanding what permits and inspections are required for AC replacement is one of the most important steps before scheduling your new system install in Wichita, KS. Most homeowners assume a simple swap is no big deal — but skipping the permit process can void your warranty, cause problems when you sell your home, and even result in fines.

Here is a quick overview of what is typically required:

Permits commonly required for AC replacement:

• Mechanical permit (required in most U.S. jurisdictions, including for like-for-like swaps)
• Electrical subpermit (required if wiring, disconnect, or panel work is involved)
• Gas or fuel permit (if converting from one energy source to another)

Inspections typically required:

• Rough-in inspection (checks connections before walls or equipment are enclosed)
• Final inspection (confirms completed installation meets current safety and energy codes)

Work that usually does NOT require a permit:

• Filter replacements and routine cleaning
• Thermostat swaps (unless new wiring is run inside walls)
• Minor component repairs such as capacitors or contactors

The short answer: in most jurisdictions across the U.S., replacing an air conditioner — even with the same size unit — requires at least a mechanical permit and a final inspection. The rules vary by city and county, so confirming with your local Authority Having Jurisdiction (AHJ) before work begins is always the right move.

Basic what permits and inspections are required for ac replacement glossary:

• how long does an ac replacement take
• how to prepare your home for ac replacement day
• what to expect during ac replacement

Understanding What Permits and Inspections Are Required for AC Replacement

When it comes to upgrading your home's comfort, navigating the local regulatory landscape is just as crucial as choosing the right cooling system. In Wichita and surrounding areas like Derby, Andover, and Maize, the local building codes exist to protect you, your family, and your investment.

For residential properties, the governing framework is typically based on the International Residential Code (IRC). This code outlines the baseline safety standards for mechanical, electrical, and plumbing systems. Any significant alteration to these systems requires a mechanical permit issued by the local building department—in our region, this is overseen by the Wichita Metropolitan Area Building and Construction Department (MABCD).

A professional installation complies with all local safety, structural, and environmental standards. To understand the entire scope of what goes into a professional system setup, you can read our comprehensive HVAC Installation Service Complete Guide.

Why Even a Like-for-Like Swap Needs a Permit

A common misconception among homeowners is that a "like-for-like" swap—replacing an old air conditioner with a brand-new unit of the exact same size and in the exact same location—does not require a permit. However, local building departments treat any equipment replacement as a significant mechanical alteration.

There are several reasons why a permit is required even for identical swaps:

• Updated Safety Codes: Building codes change over time. The safety regulations that were in place when your old AC was installed years ago have likely been updated to reflect safer, more reliable electrical and mechanical standards.
• Electrical Connections: Your new air conditioner will be connected to your home’s high-voltage electrical system. An inspector must verify that the wiring, circuit breaker, and outdoor disconnect box are correctly sized and safely installed.
• Refrigerant Line Integrity: Modern cooling systems use different refrigerants than older models. Ensuring that the refrigerant lines are properly handled, sealed, and compliant with environmental standards is critical.
• Structural and Ventilation Safety: The physical placement of the unit, its clearance from property lines, and its structural support must be verified to prevent hazards.

Skipping these checks can lead to serious performance issues down the road. To see how proper procedures affect the lifespan of your system, check out our article on How Proper AC Installation Affects Long-Term Performance.

Exceptions and Ordinary Maintenance Exemptions

While major system replacements require official oversight, you do not need to call the city building department for every minor HVAC task. Local codes allow for "ordinary maintenance" exemptions.

The following routine tasks typically do not require a permit:

• Filter Replacements: Swapping out your standard return air filters.
• Thermostat Swaps: Upgrading to a smart thermostat, provided you are using the existing low-voltage control wiring.
• Minor Repairs: Replacing individual worn-out components like capacitors, contactor switches, or fan motors within the existing unit.
• Component Cleaning: Washing the outdoor condenser coils or clearing out dust from the indoor evaporator coils.

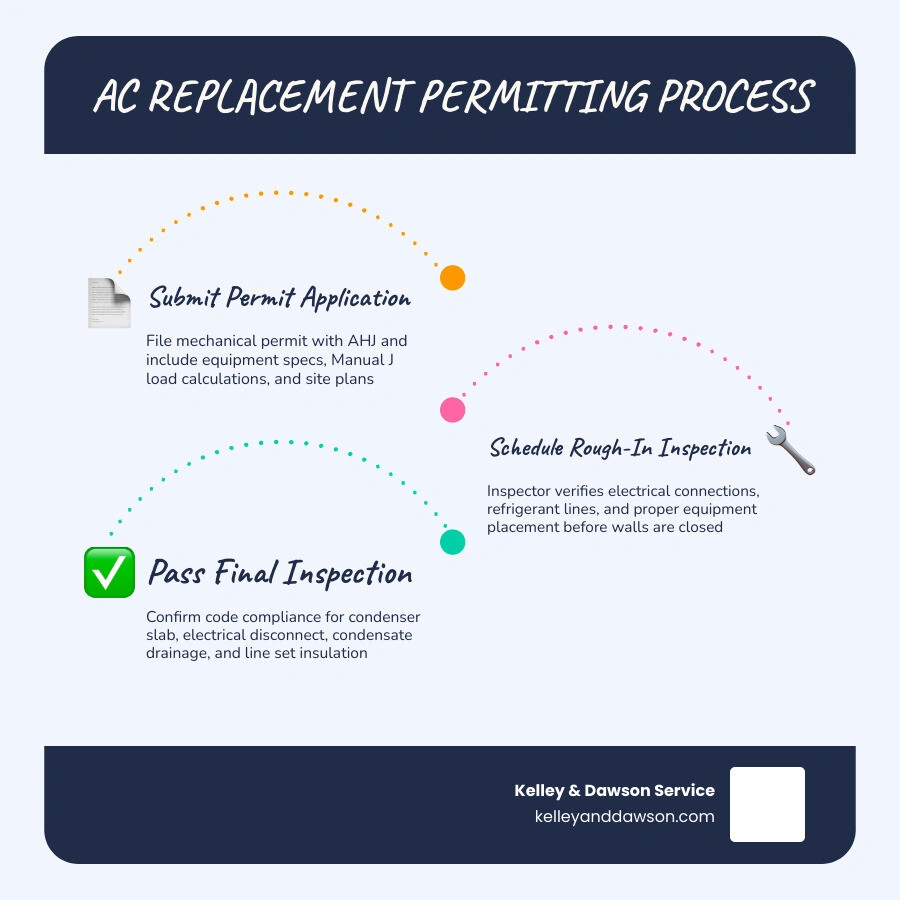

The HVAC Permit Application Process and Required Documentation

Obtaining a permit involves submitting a formal application to your local Authority Having Jurisdiction (AHJ). For residents in Wichita, Goddard, Park City, and nearby communities, this process is handled through the MABCD online portal or in-person office.

Before any physical work begins, the permit application must go through a plan check. This is where municipal plan reviewers evaluate the technical specifications of your project to ensure it aligns with local zoning and building codes. If you are preparing for a system upgrade, you can learn how to get your property ready by reading our guide on How to Prepare Your Home for AC Replacement Day.

Key Documentation for Your Permit Application

A complete and accurate permit application prevents delays and ensures a smooth approval process. The required documentation typically includes:

1. Equipment Specification Sheets: Detailed manufacturer documents showing the model numbers, heating/cooling capacities, energy efficiency ratings, and dimensions of both the indoor and outdoor units.
2. AHRI Certification: Proof from the Air-Conditioning, Heating, and Refrigeration Institute that the indoor evaporator coil and outdoor condenser are a certified, matched split system.
3. Manual J Load Calculations: A precise mathematical calculation showing that the new system is properly sized for your home’s unique square footage, insulation levels, and window placements.
4. Site Plans: A simple diagram showing the physical location of the outdoor condenser, indicating its distance from property lines, dryer vents, and window openings (especially important if the unit is being relocated).
5. Electrical Load Calculations: Verification that your home's existing electrical panel has the capacity to handle the electrical load of the new equipment.

What to Expect During the AC Replacement Inspection Process

Once the permit is approved and the installation is scheduled, the next step is the inspection process. The inspection is your safety net—it is an independent verification by a qualified city or county inspector that the work was executed safely and correctly.

Depending on the complexity of your project, the inspection process may involve:

• Rough-In Inspection: Required if new ductwork is being run through walls or if major structural or electrical modifications are made before they are covered by drywall.
• Final Inspection: The standard inspection required for all AC replacements, scheduled immediately after the installation is complete.

To get a complete picture of the entire installation timeline, you can read more about What to Expect During AC Replacement.

What Inspectors Check During the Final Inspection

During the final inspection, the municipal inspector will typically spend 20 to 30 minutes reviewing the installation. They will look closely at several critical components:

• The Condenser Slab: The outdoor unit must sit on a stable, level, and durable pad (typically concrete or high-impact composite) that is elevated at least 3 inches above the surrounding grade.
• Electrical Disconnect Box: There must be a dedicated, weather-resistant electrical disconnect switch located within sight of the outdoor unit, allowing technicians to safely cut power during future maintenance.
• Condensate Drainage: The system must have a properly sloped drain line to safely carry away water condensation. The inspector will check that the drain line discharges to an approved location and has a functional safety overflow switch.
• Line Set Insulation: The refrigerant lines must be completely insulated to prevent energy loss and condensation dripping, with the insulation protected from physical damage and UV degradation.
• Clearance Requirements: The outdoor condenser must have adequate clearance (typically a minimum of 12 to 18 inches from walls and at least 3 to 5 feet of clear space above the unit) to allow for proper airflow.

Failing to meet these strict installation standards can lead to long-term system failure and safety hazards. Read our guide on How Bad AC Installation Causes Problems for Years to see why cutting corners is never worth the risk.

State-Specific Rules: HERS Testing and Title 24

If you have researched AC replacement online, you may have run across complex terms like "Title 24 compliance" or "HERS testing" (Home Energy Rating System). These terms refer to highly strict energy conservation regulations used in states like California, which mandate specialized duct leakage testing, airflow verification, and certified third-party testing for every AC changeout.

Does this apply to Kansas? In Wichita and surrounding areas like Haysville, Kechi, and Valley Center, we do not follow California's Title 24 or require formal HERS rater certifications for standard residential AC replacements. Instead, our local inspectors focus on compliance with the adopted versions of the International Residential Code (IRC) and the National Electrical Code (NEC).

While we do not have third-party HERS testing requirements, our local codes still demand high standards of energy efficiency and proper system sizing. Choosing a professional team ensures your system meets all local Kansas codes without unnecessary administrative confusion.

The Risks of Skipping Permits for Your AC Replacement

Skipping the permitting process might seem like an easy way to save time, but the long-term risks far outweigh any short-term convenience. Doing unpermitted work can lead to serious financial, legal, and safety consequences:

• Retroactive Permits and Fines: If local building officials discover unpermitted work, they can issue a stop-work order or require you to pull a retroactive permit. This often involves paying double or triple the standard permit fees, and you may be forced to tear open walls or modify finished work so the inspector can verify the installation.
• Voided Manufacturer Warranties: Major HVAC manufacturers require proof of professional, code-compliant installation to honor their equipment warranties. If a major component fails and you cannot provide a closed-out permit record, your warranty claim may be denied.
• Home Sale Complications: When you sell your home in the future, the buyer's home inspector or the title company will check municipal records. If they discover an unpermitted heating and cooling system, it can delay closing, lower your home's value, or force you to permit the system retroactively under tight escrow deadlines.
• Insurance Claim Denials: If an unpermitted electrical connection or mechanical failure causes a fire or water damage in your home, your homeowner's insurance company may deny your damage claim, citing negligent, unpermitted work.

To understand how a proper, permitted installation affects your project schedule, read our article on How Long Does an AC Replacement Take.

Who Pulls the Permit and Can a Homeowner Do It?

In almost all residential AC replacements, the licensed HVAC contractor performing the work should pull the permit. Because the contractor is registered with the city and holds the necessary professional licensing, insurance, and surety bonds, they are legally responsible for ensuring the work meets all local codes.

While some jurisdictions allow for "homeowner-builder" permits, pulling a permit yourself means you assume all legal and physical liability for the safety and compliance of the installation. If the installation fails inspection, you are responsible for fixing the issues. When a reputable contractor handles the process, they manage the paperwork, coordinate the inspection, and guarantee that the system passes local building codes.

Frequently Asked Questions About AC Permits and Inspections

What permits and inspections are required for ac replacement on a historic home?

Replacing an air conditioner in a designated historic home or district (such as certain historic neighborhoods in Wichita) often requires additional layers of approval. In addition to a standard mechanical permit, you may need a Certificate of Appropriateness from your local historic preservation board or zoning committee. These boards review the aesthetic impact of the installation, often requiring that outdoor units be screened from street view or placed in specific, low-visibility locations to preserve the historic character of the property.

What permits and inspections are required for ac replacement when upgrading system capacity?

If you are upgrading your system’s capacity (for example, moving from a 3-ton to a 4-ton unit), your permit application must include updated Manual J load calculations to justify the larger size. This capacity increase will trigger a closer inspection of your ductwork to ensure it can handle the increased airflow, as well as an electrical load calculation to verify that your electrical panel and wiring can safely supply the extra power required by the larger compressor.

How long does it take to get an AC replacement permit approved?

For standard, like-for-like residential replacements, many modern building departments—including the MABCD in our area—offer streamlined online permit portals that can issue permits almost instantly or within 24 to 48 hours. If your project involves a capacity upgrade, relocation of the outdoor unit, or significant structural changes, a manual plan review may be required, which typically takes 1 to 2 weeks for approval.

Conclusion

Ensuring that your home’s cooling system is installed safely and legally is the key to long-term comfort, safety, and peace of mind. Navigating local building codes, pulling the correct permits, and scheduling final inspections are essential steps that should never be bypassed.
