How to Evaluate Ductwork During AC Replacement

Why Understanding How Ductwork Is Evaluated During AC Replacement Can Save You Real Money and Comfort

How ductwork is evaluated during AC replacement is one of the most important — and most overlooked — parts of any cooling system upgrade in Wichita, KS. Most homeowners focus on the new AC unit itself, but a brand-new air conditioner is only as good as the duct system delivering its output. If your ducts are leaking, undersized, or deteriorating, even a top-of-the-line system will struggle to keep your home comfortable.

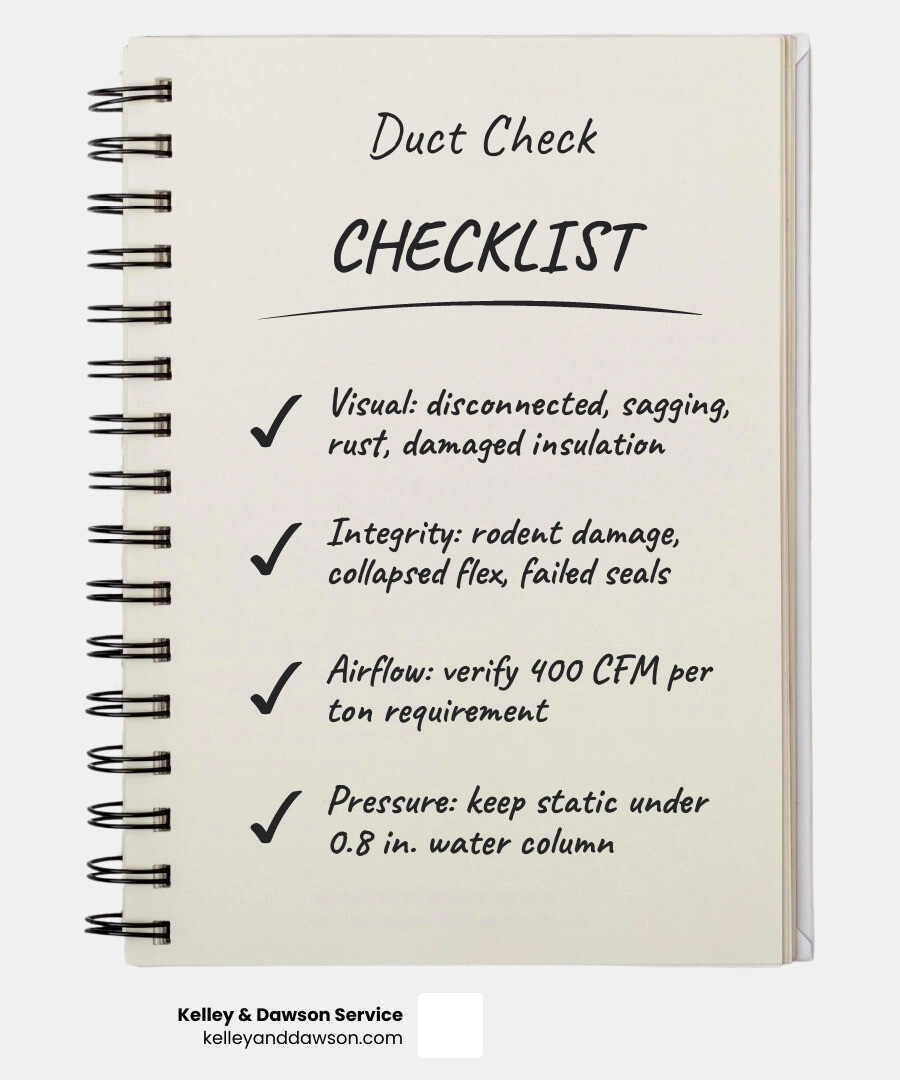

Here is a quick overview of how HVAC professionals evaluate ductwork during an AC replacement:

1. Visual inspection - Check for disconnected sections, sagging, rust, and damaged insulation
2. Physical integrity check - Look for rodent damage, collapsed flex duct, and failed seals
3. Airflow measurement - Verify the system meets the 400 CFM-per-ton standard
4. Static pressure testing - Confirm airflow resistance stays under 0.8 inches of water column
5. Duct sizing verification - Compare duct diameters to Manual D calculations for the new unit
6. Leak detection - Pressurize the system to find air escaping before it reaches living spaces
7. Insulation review - Check R-values on ducts running through unconditioned spaces like attics

Duct systems older than 15 to 20 years are frequently found to be leaking, undersized, or failing — and leaky ducts can lose 20% or more of your conditioned air before it ever reaches a room. Addressing duct condition at the same time as your AC replacement is the smartest way to protect your investment and actually feel the difference a new system can make.

Learn more about how ductwork is evaluated during ac replacement:

• how long does an ac replacement take
• how to prepare your home for ac replacement day

Why Ductwork Evaluation is Critical During AC Replacement

When we install a brand-new, high-efficiency air conditioning system, we are placing a high-performance engine inside your home. However, if that engine is connected to a clogged, narrow, or leaky exhaust system, it cannot run properly. Your ductwork acts as the highway network for your home's conditioned air. If the highway is full of potholes, detours, and dead ends, the air will never reach its destination efficiently.

Evaluating your duct system ensures that your new AC has the proper airflow capacity to function without straining. When airflow is restricted, your system has to work twice as hard to cool your home, leading to excessive wear and tear on vital components. This extra strain directly shortens your system’s lifespan. By taking the time to inspect the ducts beforehand, we can prevent premature equipment breakdowns and protect your warranty. To understand how vital this synergy is, read about How Proper AC Installation Affects Long-Term Performance.

Furthermore, failing to evaluate your ductwork leads to massive energy waste and severely compromised indoor air quality. Leaky ducts in unconditioned spaces like attics or crawlspaces can pull in dust, pollen, and outdoor humidity, dispersing them throughout your living areas. If you are upgrading your AC to lower your utility bills and breathe cleaner air, skipping a ductwork evaluation will defeat the purpose of your investment.

How ductwork is evaluated during ac replacement for modern system compatibility

Modern air conditioners are built to meet strict SEER2 energy standards. To hit these high-efficiency markers, modern systems rely on advanced blower motors (often variable-speed ECM motors) that are highly sensitive to resistance within the ductwork. If your old ductwork was designed for older, single-speed motors, it may not be compatible with a modern high-efficiency unit.

During an evaluation, we look closely at how the duct system manages static pressure. High static pressure is the HVAC equivalent of high blood pressure; it forces the blower motor to work at maximum capacity, which can burn out expensive parts long before their time. Understanding these variables is key to keeping your home comfortable. For a deeper look at how these elements work together, check out our guide on Understanding HVAC Systems.

The impact of duct sizing on new equipment performance

One of the most common issues we find in older homes across Wichita, Maize, and Derby is a mismatch in duct sizing. An air conditioner requires a precise volume of air to pass over its indoor evaporator coil to prevent freezing. The gold standard in residential HVAC is 400 CFM (Cubic Feet per Minute) of airflow per ton of cooling capacity.

If you are installing a 3.5-ton AC system, it requires exactly 1,400 CFM of airflow. If your existing return air ducts are undersized—for example, a single 16-inch return duct that can only handle roughly 1,050 CFM—your new system will be starved for air. This "airflow starvation" can lead to frozen coils, weak airflow at your registers, and loud whistling noises. We always verify that your return air capacity matches your supply side to keep the system balanced. You can learn more about how proper sizing prevents these issues by reading How Proper HVAC Sizing Affects Comfort and Efficiency and How Incorrect Sizing During Installation Wastes Energy.

The Step-by-Step Process: How Ductwork Is Evaluated During AC Replacement

When our experienced technicians arrive to evaluate your home's ductwork, we do not just shine a flashlight down a single register and call it a day. We perform a comprehensive, scientific evaluation using specialized diagnostic tools to measure the physical integrity and aerodynamic performance of your system.

Visual inspection and physical integrity checks

The first phase is a hands-on physical assessment. We trace as much of the visible ductwork as possible, looking for structural failures, disconnected sections, and crushed flexible ducts. In older Kansas homes, we frequently find that sections of ductwork in attics or basements have completely slipped off their boots, meaning the old AC was cooling the attic instead of the bedrooms!

We also look for:

• Rodent damage: Mice and squirrels love to tear into flexible ductwork to build nests, leaving behind holes and contamination.
• Deteriorating insulation: Old fiberglass duct wrap can break down, causing the cold air inside the metal ducts to warm up before it reaches your rooms.
• Failed seals: Standard grey duct tape is ironically terrible for ducts; it dries out and falls off over time. We check for gaps where joints have lost their seal.

If these visual errors are left unaddressed, they will ruin your home's comfort. See our detailed breakdown of How Ductwork Mistakes During Installation Hurt Your Comfort to understand what we look for.

How ductwork is evaluated during ac replacement using static pressure and airflow measurements

Once the visual inspection is complete, we move on to pressure testing. We use a digital manometer to measure the total external static pressure (TESP) of your system. By inserting small pressure probes into the supply plenum (just after the indoor coil) and the return plenum (just before the filter), we can see exactly how much resistance the air faces.

We also use Manual D calculations to compare your duct diameters to the manufacturer's required airflow specifications. This allows us to identify bottlenecks in your trunk lines or branch runs.

Common Problems Found in Older Wichita Duct Systems

Wichita and its surrounding communities, like Valley Center, Park City, and Goddard, boast beautiful older homes with incredible character. However, these older properties often come with outdated HVAC infrastructure. Here are the most common ductwork problems we encounter during AC replacements in our local area:

• Air Leaks at Joints and Seams: Over decades of expanding and contracting with Kansas's extreme seasonal temperature swings, duct joints naturally separate. This allows conditioned air to escape into unconditioned crawlspaces.
• Poor or Missing Insulation: Many older duct systems running through hot attics have thin, outdated insulation (R-2 or R-4). Modern building codes recommend at least R-8 insulation to prevent thermal loss.
• Undersized or Poorly Designed Returns: Builders decades ago often installed only one central return grate for the entire house. Modern comfort standards require balanced return air pathways to prevent pressure imbalances when bedroom doors are closed.
• Outdated Layout Choices: As homes are remodeled, walls are moved, or basements are finished, the original duct layout often fails to distribute air properly to the new configurations, leading to hot and cold spots.

Repair, Seal, or Replace: Making the Right Decision

Once we have completed our evaluation, we present you with a clear diagnostic report. We do not believe in a one-size-fits-all approach. Depending on the physical condition and performance metrics of your ducts, we will recommend one of three paths:

1. Duct Sealing and Repairs: If your ducts are structurally sound and sized correctly but have minor air leaks, we can seal the joints using professional-grade, paint-on mastic sealant reinforced with fiberglass mesh. This is a highly cost-effective way to boost efficiency by 10% to 15%.
2. Targeted Modifications: Sometimes, your entire duct system does not need to be replaced. We might simply recommend adding a second return air duct or replacing a single restricted trunk line to give your new AC the breathing room it needs.
3. Full Duct Replacement & Custom Fabrication: If your ducts are crumbling, heavily contaminated by mold or pests, badly undersized, or made of deteriorating materials, a full replacement is the best long-term investment.

We specialize in custom sheet metal fabrication, allowing us to design and build a duct system tailored perfectly to the unique layout of your home. To see how custom metalwork can revolutionize your home's airflow, read our article on How Custom Ductwork Improves Home Comfort. If you live in the Derby area and are planning an upgrade, visit our dedicated service page for AC Replacement Derby KS.

Frequently Asked Questions About Ductwork Inspections

How long does a professional duct evaluation typically take?

A thorough, professional ductwork evaluation usually takes between 45 and 90 minutes. This includes the time needed to perform the visual inspection in your attic, basement, or crawlspace, set up our digital testing equipment, measure static pressure, and calculate airflow requirements.

Can I keep my old ducts if I buy a high-efficiency AC?

Yes, in many cases you can keep your existing ducts, but only if they pass a compatibility check. Because modern high-efficiency AC units require 30% to 40% more precise airflow than older systems, we must verify that your current ducts are clean, properly sealed, and large enough to handle the volume of air your new system will produce.

What is the most common duct issue found during replacement?

The number one problem we find is undersized return air ducts. Many older homes were built with minimal return pathways, which chokes the airflow of modern blower motors. Addressing this simple bottleneck during your AC installation can instantly resolve uneven room temperatures and noisy grates.

Conclusion

Upgrading your air conditioner is a major investment in your family's comfort and your home's energy efficiency. By understanding how ductwork is evaluated during AC replacement, you can make sure that your new system has the solid foundation it needs to perform at its absolute best for years to come.

At Kelley & Dawson Plumbing, Heating & Air, we bring nearly 60 years of family-driven experience to every home we service in Wichita, Augusta, Andover, and the surrounding areas. As Trane and Daikin certified specialists, we take pride in our meticulous care, cleanliness, and 24/7 support. We do not just swap out equipment; we look at your entire home as a complete comfort system.

Are you ready to experience the difference that a professionally designed and evaluated comfort system can make? Contact us today to schedule your consultation and explore our AC Replacement Wichita KS services. Let us help you keep your home perfectly cool, efficient, and comfortable all summer long!
